pixel pitch 3mm module size 192*192mm module resolution 64*63 LED SMD2121 Scan 1/32scan Application indoor Weight 0.5KG LED Cabinet Cabinet Size 576*576mm Cabinet resolution 192*192 dots module quantity 3*3pcs Material Die casting aluminum
 |
pixel pitch | 3mm |
| module size | 192*192mm | |
| module resolution | 64*63 | |
| LED | SMD2121 | |
| Scan | 1/32scan | |
| Application | indoor | |
| Weight | 0.5KG | |

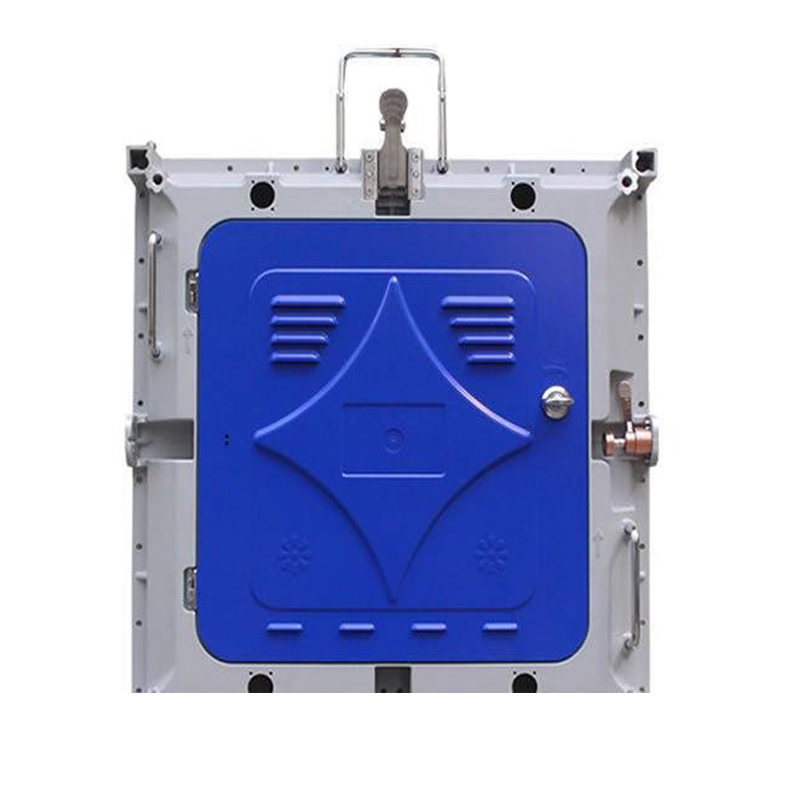

| LED Cabinet | ||
 |
Cabinet Size | 576*576mm |
| Cabinet resolution | 192*192 dots | |
| module quantity | 3*3pcs | |
| Material | Die casting aluminum cabinet | |
| Driver | G-energy | |
| LED Screen | |||||
|
|
Pixel | 111111 dots/㎡ | Continuous Working Hours | >72 hours | |
| Ave power consumption | 400W/㎡ | Using Life | 100,000 hours | ||
| Max power consumption | 900W/㎡ | MTBF | >10,000H | ||
| Optimum Viewing Distance(m) | 3-50m | Scatter OOC Point | <0.01% | ||
| Brightness(cd/m2) | >1000cd | Continuous OOC Point | None | ||
| Refresh Rate | 300---2440 frame/s | IP Grade | IP40 | ||
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | ||
| Display color | 17M——69G | Working Humidity | 10---90% | ||
