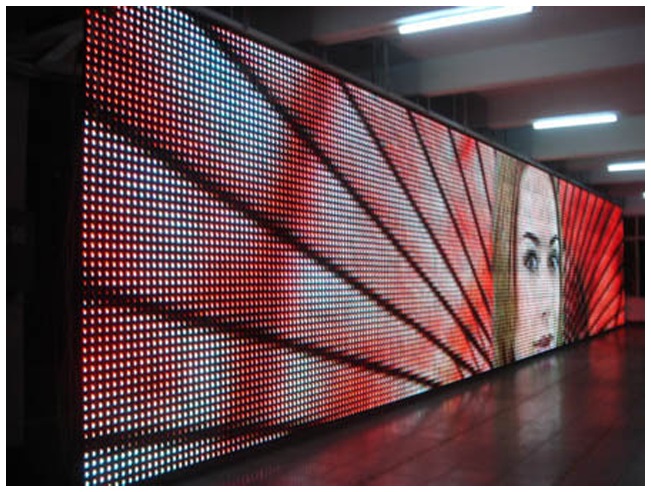

Indoor P10 LED Screen: Pixel pitch: 10mm; Module size: 320*160mm; Module resolution: 32*16 dots; Pixel density: 10000 dots/m²
| LED Module | ||
 |
pixel pitch | 10mm |
| module size | 320*160mm | |
| module resolution | 32*16 | |
| LED | SMD3528 | |
| Scan | 1/4 scan | |
| Application | indoor | |
| LED Cabinet | ||
 |
Cabinet Size | 960mm（W）* 960mm（H） |
| Cabinet resolution | 96*96dots | |
| module quantity | 3*6pcs | |
| LED driver | 5V 60A | |
| Material | iron cabinet without back cover | |
| Receiving card | Nova/Linsn/Colorlight | |
| LED Screen | ||||
 |
Pixel | 10000dots/㎡ | Continuous Working Hours | >72 hours |
| Ave power consumption | 250W/㎡ | Using Life | 100,000 hours | |
| Max power consumption | 600W/㎡ | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | ≥10m | Scatter OOC Point | <0.01% | |
| Brightness(cd/m²) | ≥1200cd | Continuous OOC Point | None | |
| Refresh Rate | 960HZ | IP Grade | IP45 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 17M——69G | Working Humidity | 10---70% | |
