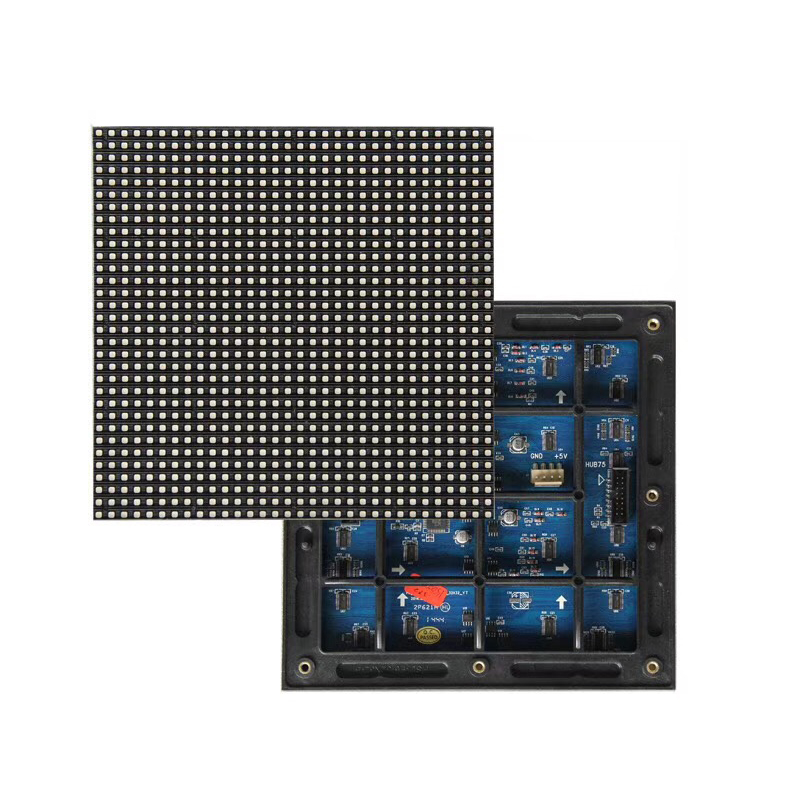

LED Module pixel pitch 5mm module size 320*160mm module resolution 32*32 LED SMD2525 Kinglight LED Scan 1/16scan Application indoor Weight 0.5KG LED Cabinet Cabinet Size 640*640mm Cabinet resolution 128*128dots module quantity 2*4pcs LED dr
| LED Module | ||
 |
pixel pitch | 5mm |
| module size | 320*160mm | |
| module resolution | 32*32 | |
| LED | SMD2525 Kinglight LED | |
| Scan | 1/16scan | |
| Application | indoor | |
| Weight | 0.5KG | |
| LED Cabinet | ||
 |
Cabinet Size | 640*640mm |
| Cabinet resolution | 128*128dots | |
| module quantity | 2*4pcs | |
| LED driver quantity | G-Energy 5v 40A | |
| Material | Die casting aluminum | |
| Receiving card | 1pcs | |
| LED Screen | |||||
|
|
Pixel | 40000dots/㎡ | Continuous Working Hours | >72 hours | |
| Ave power consumption | 500W/㎡ | Using Life | 100,000 hours | ||
| Max power consumption | 1000W/㎡ | MTBF | >10,000H | ||
| Optimum Viewing Distance(m) | 5m-50m | Scatter OOC Point | <0.01% | ||
| Brightness(cd/m2) | >6500cd | Continuous OOC Point | None | ||
| Refresh Rate | 300---2440 frame/s | IP Grade | IP65/IP54 | ||
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | ||
| Display color | 1M——69G | Working Humidity | 10---90% | ||
