Module pixel pitch: 2.5mm; Module size: 160*160mm; Module resolution: 64*64 dots; Cabinet Size: 640*640mm; Cabinet resolution: 256*256 dots; Cabinet Material: die casting aluminum Application: indoor rental

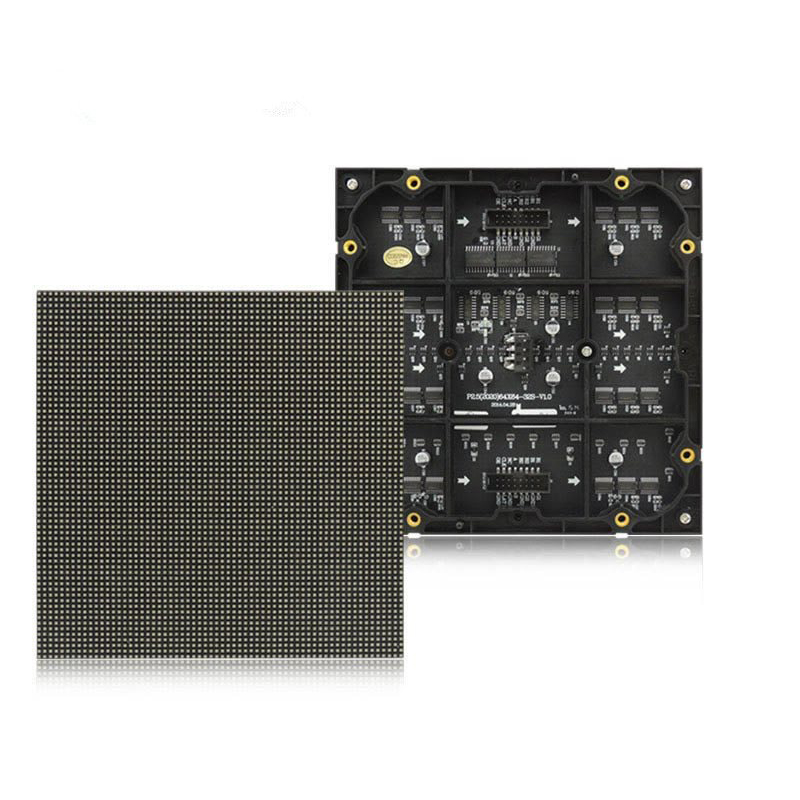

| LED Module | ||
 |
pixel pitch | 2.5mm |
| module size | 160*160mm | |
| module resolution | 64*64 dots | |
| LED | SMD2121 | |
| Scan | 1/32scan | |
| Application | indoor | |

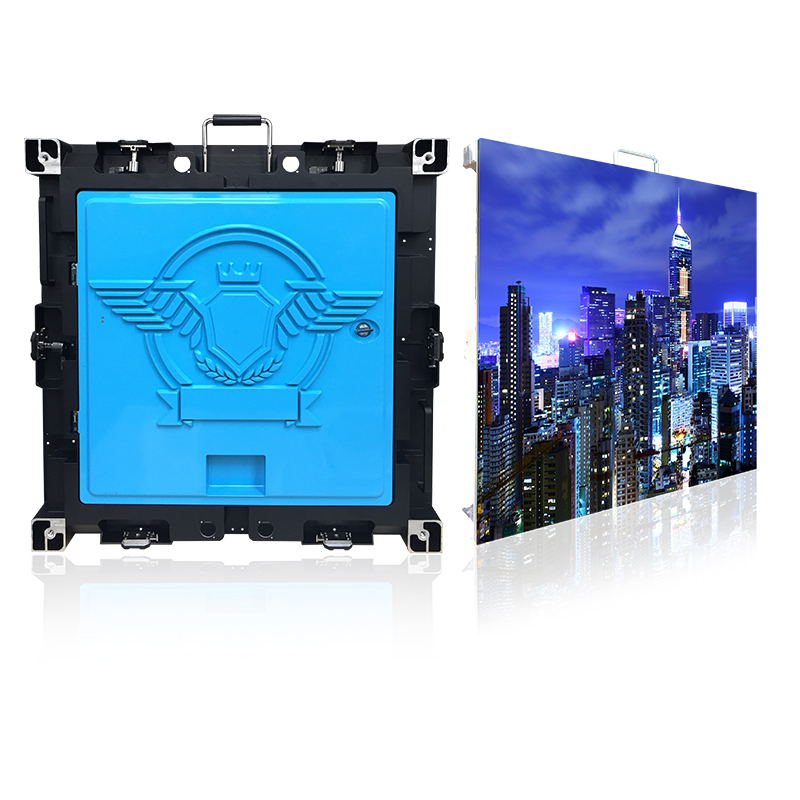

| LED Cabinet | ||
 |
Cabinet Size | 640*640mm |
| Cabinet resolution | 256*256 dots | |
| module quantity | 4*4pcs | |
| cabinet material | Die casting aluminum | |
| led driver | 5V 40A | |
| receiving card | 1 piece | |
| LED Screen | |||||
|
|
Pixel | 160000 dots/㎡ | Continuous Working Hours | >72 hours | |
| Ave power consumption | 400W/㎡ | Using Life | 100,000 hours | ||
| Max power consumption | 900W/㎡ | MTBF | >10,000H | ||
| Optimum Viewing Distance(m) | 2.5-1000m | Scatter OOC Point | <0.01% | ||
| Brightness(cd/m2) | >1200cd | Continuous OOC Point | None | ||
| Refresh Rate | 300---2440 frame/s | IP Grade | IP45/IP30 | ||
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | ||
| Display color | 17M——69G | Working Humidity |
10---70% |
||
