LED Module pixel pitch 8mm module size 256*128mm module resolution 32*16 LED SMD3535 Scan 1/4scan Application Outdoor Weight 0.4KG LED Cabinet Cabinet Size 1024*1024mm Cabinet resolution 128*128dots module quantity 4*8pcs Material Sealed ir

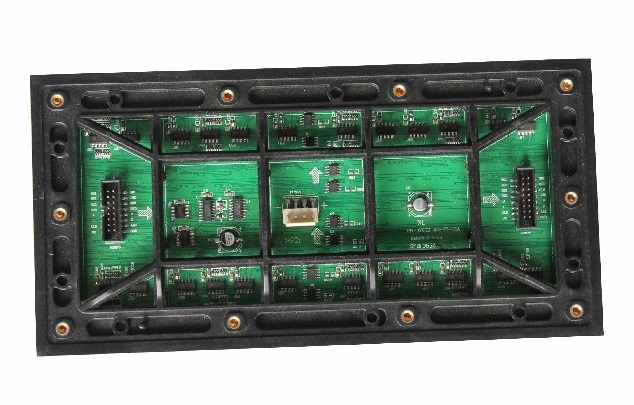

| LED Module | ||
 |
pixel pitch |
8mm |
|
module size |
256*128mm | |
|
module resolution |
32*16 dots | |
|
LED |
SMD3535 | |
|
Scan |
1/4scan | |
|
Application |
Outdoor | |
|
Weight |
0.4KG | |
| LED Cabinet | ||
 |
Cabinet Size | 768*1280mm |
| Cabinet resolution | 96*160dots | |
| module quantity | 3*10pcs | |
| LED driver | 5V 40A | |
| Material | Sealed waterproof iron cabinet | |
| Receiving card | 1 piece | |
| LED Screen | ||||
|
|
Pixel | 15625dots/㎡ | Continuous Working Hours | >72 hours |
| Ave power consumption | 500W/㎡ | Using Life | 100,000 hours | |
| Max power consumption | 1100W/㎡ | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | 8-100m | Scatter OOC Point | <0.01% | |
| Brightness(cd/m2) | >5500cd | Continuous OOC Point | None | |
| Refresh Rate | 960Hz | IP Grade | IP65/IP54 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 17M——69G | Working Humidity | 10---90% | |
